NEW 20" Vertical Bandsaw - Inverter | High Performance
NEW 20" Vertical Bandsaw - Inverter | High Performance：圖片 2
NEW 20" Vertical Bandsaw - Inverter | High Performance：圖片 3

*最新* VBS-2013 富合500立式變頻帶鋸機 | 高效能



The New FUHO VBS-2013 high-speed vertical contour bandsaw is an extra heavy-duty vertical bandsaw that does small work out of a big job. All the advanced features and the wide speed range provide an easy operation to cut all kinds of metals and non-metal materials.

The built-in electric tachometer will give the readouts of the speed, rendering these models suitable for cutting materials of all stripes. Speeds from 15 to 1500 m/min, the dual range transmission also provide high torque and superior speed control.

變頻 + 煞車 + 噴霧

型號:

VBS-2013 | VBS-2013-CE : 固定工作台

VBS-2013E | VBS-2013E-CE : 電動工作台 (自動進料)

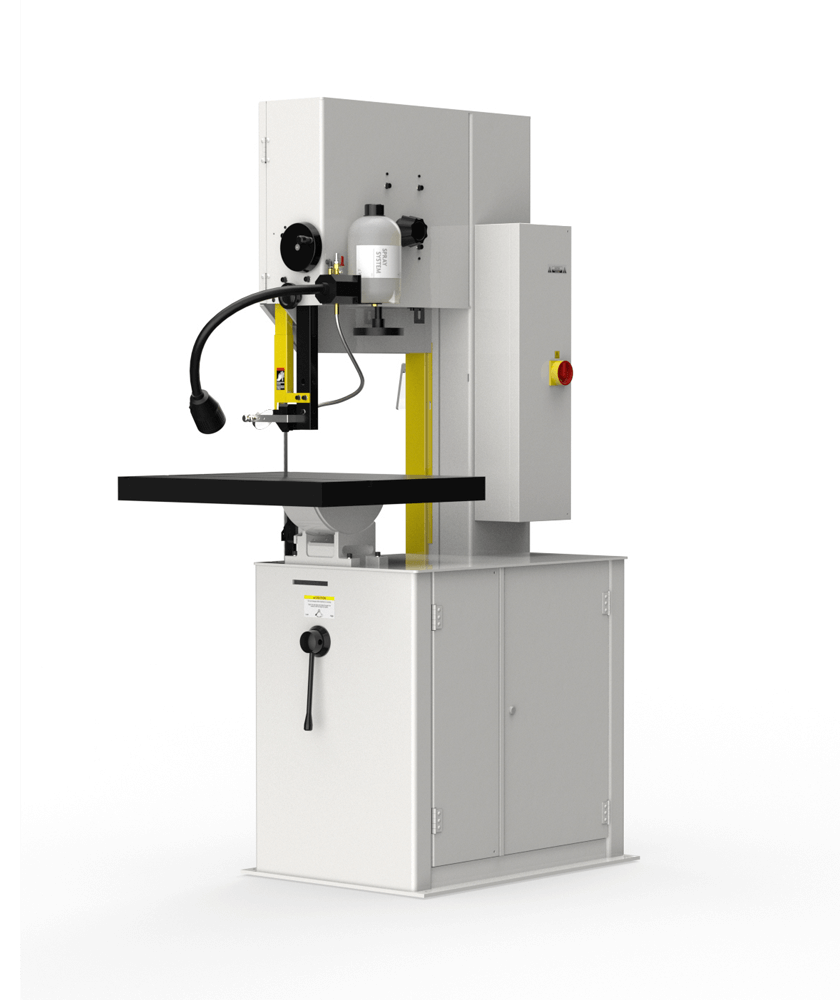

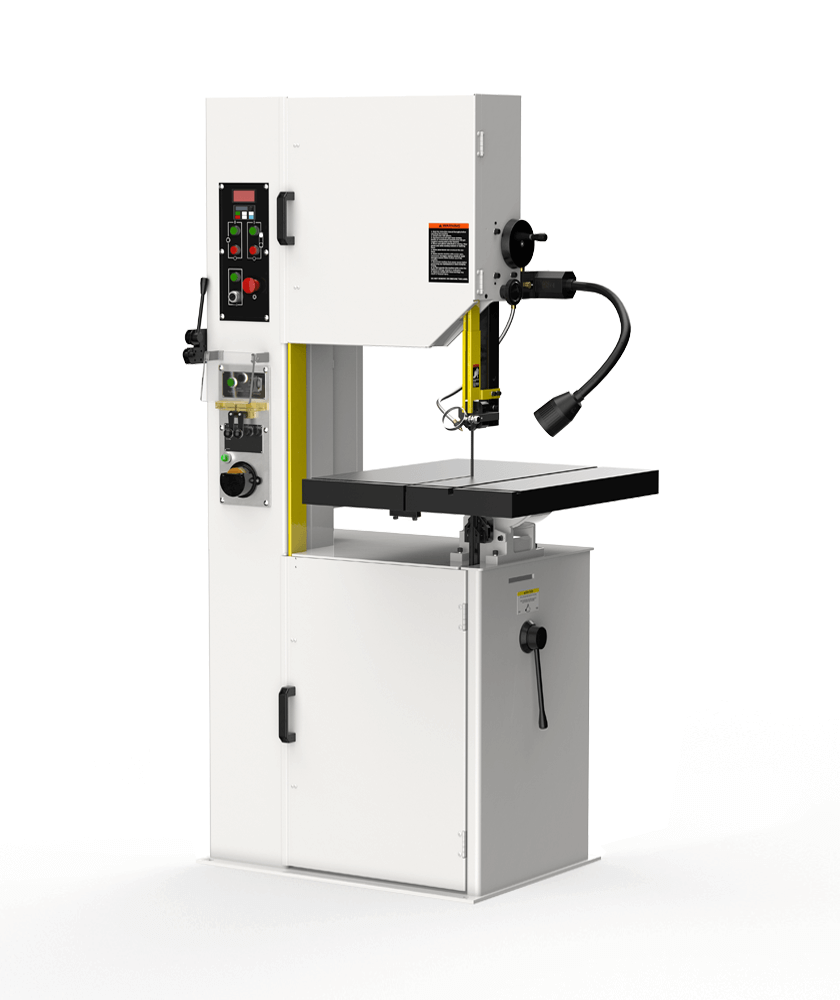

Image Shown: VBS-2013-CE

機型: VBS-2013 分類: , 標籤: , , , , ,

規格

產品型號 VBS-2013 VBS-2013E
最大喉深 508 mm ; 20 inch
切削高度 330 mm ; 13 inch
輪徑 515 mm × 2 ; 20-1/4 inch × 2
帶鋸速度 50Hz/60Hz Low 15 – 120, HI 190 – 1500 M/min
Low 50 – 400, HI 625 – 5000 F/min
主馬達 3 HP ; 2.2 KW × 3PH
工作台尺寸 600 × 700 mm
23-1/2 × 27-1/2 inch
工作台傾斜角度 R-12°, L-12°
工作台高度 990 mm ; 39 inch
最大帶鋸長度 4035 mm ; 158-3/4 inch
最大帶鋸寬度 27 mm ; 1 inch
熔接能力 19 mm ; 3/4 inch

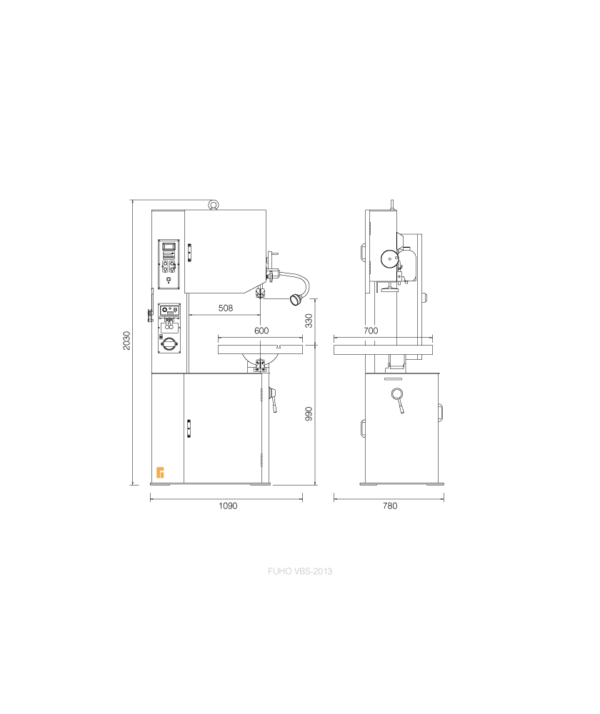

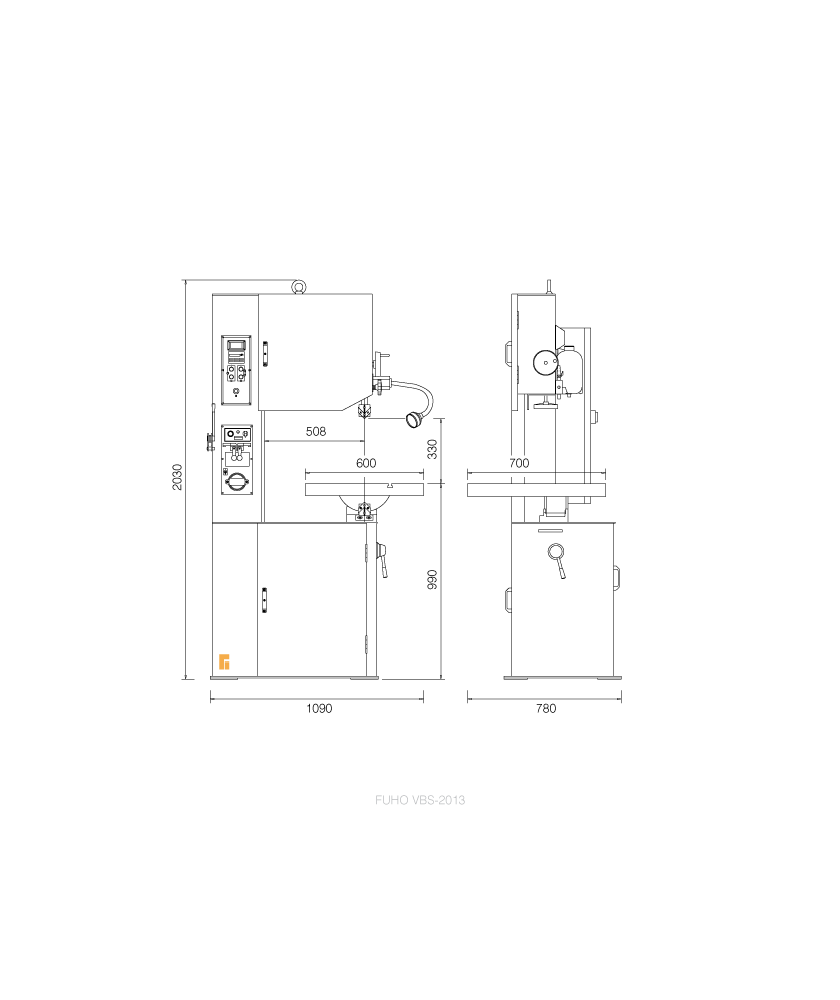

機台尺寸 1090 × 780 × 2030 mm;
43 x 30 x 80 inch
淨重 570 kgs ; 1260 lbs 605 kgs ; 1340 lbs
工作台進給 / 80 kgcm, 110V
工作台行程 / 300 mm ; 12 inch

標準配備

標準配備 VBS-2013 VBS-2013-ce VBS-2013E VBS-2013E-ce
變頻+剎車 *NEW* ✓ CE ✓ CE
鍵形開關 ✓ CE ✓ CE
警急停止鈕 ✓ CE ✓ CE
門安全開關 ✓ CE ✓ CE
維修開關 ✓ ✓ ✓ ✓
電子轉速器 ✓ ✓ ✓ ✓
熔接機 ✓ CE ✓ CE
砂輪 ✓ CE ✓ CE
剪刀 ✓ ✓ ✓ ✓
工作燈 (LED) ✓ ✓ ✓ ✓
放大鏡 ✓ ✓ ✓ ✓
通用夾片 ✓ ✓ ✓ ✓
直角器 ✓ ✓ ✓ ✓
角度規 ✓ ✓ ✓ ✓
圓形切斷器 ✓ ✓ ✓ ✓
帶鋸張力指示 ✓ ✓ ✓ ✓
上輪傾斜調整器 ✓ ✓ ✓ ✓
導桿升降手輪 ✓ ✓ ✓ ✓
手動快速進料 ✓ ✓
自動進料 ✓ CE
T槽 ✓ ✓
輪子清潔刷 ✓ ✓ ✓ ✓
噴霧系統 (外接風源) *NEW* ✓ ✓ ✓ ✓
集屑盒 ✓ ✓ ✓ ✓
工具箱 ✓ ✓ ✓ ✓

詞彙表

MAIN BODY: HEAVY-DUTY BANDSAW WITH PROVEN DESIGN
Extremely stable construction, entire machine base made of heavy gauge steel, providing a rigid and solid foundation, reducing vibration while cutting at high speeds

BLADE WELDER: A MUST-HAVE DEVICE IN EVERY MACHINE SHOP AND MAINTENANCE STORE
An integrated blade welder equipped with annealing, cutting and grinding devices can easily cut blades into required length, which makes a big saving on the blade costs. Blades can also be broken and re-welded for internal cutting.

BLADE TENSION: USER-FRIENDLY DESIGN
Regardless of the blades’ width, the user-friendly blade tension indicator assures fast, easy and accurate settings.

TRANSMISSION: VARIABLE SPEEDS PROVIDE HIGH-EFFICIENCY CUTTING
Exclusive design on adjustable blade speeds allows a variety of cutting applications.

BLADE GUIDES: UNIVERSAL TYPE FOR A FULL RANGE OF BLADES
Universal V-type blade guides with guide supports, adjustable for a full range of blades from 3-25 mm (0.125” to 1”)

BLADE WHEELS: BALANCED RUBBER-COATED WHEELS ASSURE LONG-TERM USE
Balanced wheels coated with rubber tires protect not only the blades’ teeth but also assure long-term use running at all speeds.

TABLE: MULTI-TILTING CAST IRON TABLE REDUCES VIBRATION FROM CUTTING AT HIGH SPEEDS
The multi-tilting worktable constructed with cast iron can handle large production pieces and reduce cutting vibrations. VBS-2013 and above models are equipped with T slots, while E models with the genius design of FUHO electric power table, which makes the maintenance so easy that the user requires no extra care on the table.

INVERTER + BRAKE: HIGH-EFFICIENCY CUTTING WITH EASIER AND SAFER OPERATION
The FUHO inverter models are replacing the traditional mechanical transmission with the characteristic of an inverter to reduce spare parts’ weariness. Easier and more efficient operation on speed adjustment, with braking resistance for an automatic blade stop function, which provides better safety protection.

SPRAYING SYSTEM: MULTIFUNCTION, SIMPLE AND CONVENIENT
The minimal spraying system could use for chip blow, mist and lubrication. (Plant air required)
